Vritti Associates

500 Piece (MOQ)

Business Type Manufacturer, Exporter
Country of Origin India
Certification ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D
Finishing Polished
Click to view more

Preferred Buyer From

Location India, United Arab Emirates, Canada, Spain, Netherlands, Singapore, United Kingdom, United States

Product Details

Power
10 KW
Driven Type
Electric
Weight
5-10 Tons

Vritti Associates introducing international standard Box Series Medical Grade Isolation Transformers with very low noise and minimal Electro-Magnetic Radiation available in different models in aesthetic enclosures suitable for floor or wall mountable type.

Vritti Associates' Isolation Transformers offers reinforced safety when using in electronic devices or even for electro medical equipments. Our safety standards are well within the recommended standards in compliance as stipulated by National Electrical Code and as per Underwriters Laboratories safety standards.

Vritti Associates manufactures a wide range of transformers for the medical industry. These can be supplied on either a standalone unit or for assembly in customer's equipment.

We have models available for both international standards at 115V/60 Hz and in domestic usage at 230/50 Hz.

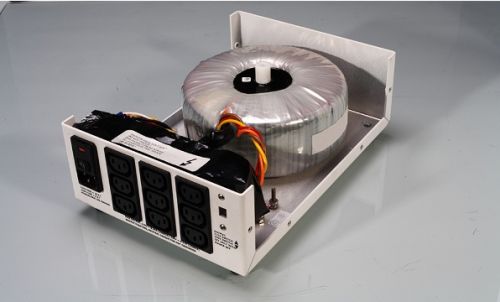

The main transformer is of Toroidal type which we produce in-house and it is one of the most advantageous as compared with other type of transformers mainly it is very efficient, small in size, low noise, low in Electro Magnetic Interference which in turn enhances the performance of the electronic and other electro medical equipments.

We follow some of the below regulations which fall under UL 60601-1, CSA C22.2 No.601 and EN 60601-1 standards like

  • Max. patient auxiliary current
  • Max. enclosure leakage current
  • Max. patient leakage current
  • Max. High voltage test between windings
  • Min. creepage distance
  • Min. air clearance
  • Max. temperature rise at load and at over load
  • Limited max. earth leakage current

We can offer a wide range of products that can be easily configured. We can provide the required cable assembly, enclosures, and circuitry designs as per your requirements.

These transformers are mainly used in computers, Audio/Video monitors, closed circuit surveillance cameras, test and measuring instruments, digital printers, and hospitals and in other electronic/electro medical equipments.

Yes! I am interested


Isolation Transformer Model: MIT-300 VA / MIT-600 VA

General Specifications
300 VA power isolation transformer 600 VA power isolation transformer
IEC inlet fuse for each line IEC inlet fuse for each line
Medical filter on input side Medical filter on input side
IEC outlets 6 way IEC outlets 9 way
Inrush current limiting Inrush current limiting
Thermal circuit breaker Thermal circuit breaker
Output's with fuse safety Output's with fuse safety
Dimension: Dimension:
Electrical Specifications: Electrical Specifications:
I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz
Output rating: 115/120 V or 220/230 V@ 300 VA Output rating: 115/120 V or 220/230 V@ 600 VA
Regulation: <4% Regulation: <4%
Temperature Rise: <40% Temperature Rise: <40%
Leakage current: Leakage current:
Overall Specifications: Overall Specifications:
I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz
Input filter: Medical low leakage<5µA of rating 4A Input filter: Medical low leakage<5µA of rating 4A
Input fuses: Input fuses:
Output rating: 115/120 V or 220/230 V@ 300 VA Output rating: 115/120 V or 220/230 V@ 600 VA
Output fuses: Output fuses:
Inrush current: Inrush current:
Power On Indication: Yes Power On Indication: Yes
Output Indicator: Yes Output Indicator: Yes

Please Find The Below Given Our Various Series Of Isolation Transformers With Specifications

MIT-300 VA MIT-600 VA
115/120@ 60 Hz | 220/230 V @ 50 Hz 115/120@ 60 Hz | 220/230 V @ 50 Hz
115/120 V Out | 220/230 V Out 115/120 V Out | 220/230 V Out
300 VA 600 VA
Filtering standard as per UL2601.1 Filtering standard as per UL2601.1

Isolation Transformer Model: MIT-1000 VA / MIT-1500 VA

1000 VA power isolation transformer 1500 VA power isolation transformer
IEC inlet fuse for each line IEC inlet fuse for each line
Medical filter on input side Medical filter on input side
IEC outlets 6 way IEC outlets 9 way
Inrush current limiting Inrush current limiting
Thermal circuit breaker Thermal circuit breaker
Output's with fuse safety Output's with fuse safety
Dimension: Dimension:
Electrical Specifications: Electrical Specifications:
I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz
Output rating: 115/120 V or 220/230 V @ 1000VA Output rating: 115/120 V or 220/230 V@ 1500VA
Regulation: <4% Regulation: <4%
Temperature Rise: <40% Temperature Rise: <40%
Leakage current: Leakage current:
Overall Specifications: Overall Specifications:
I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz I/pVg:115/120 V@ 60 Hz or 220/230 V@50/60 Hz
Input filter: Medical low leakage<5µA of rating 4A Input filter: Medical low leakage<5µA of rating 4A
Input fuses: Input fuses:
Output rating: 115/120 V or 220/230 V @ 1000 VA Output rating: 115/120 V or 220/230 V@ 1500 VA
Output fuses: Output fuses:
Inrush current: Inrush current:
Power On Indication: Yes Power On Indication: Yes
Output Indicator: Yes Output Indicator: Yes

Please Find The Below Given Our Various Series Of Isolation Transformers With Specifications

MIT-1000 VA MIT-1500 VA
115/120@ 60 Hz | 220/230 V @ 50 Hz 115/120@ 60 Hz | 220/230 V @ 50 Hz 115/120 V Out | 220/230 V Out 115/120 V Out | 220/230 V Out
1000 VA 1500 VA
Filtering standard as per UL2601.1 Filtering standard as per UL2601.1 Isolation Transformer Model: MIT-1000 VA / MIT-1500 VA
